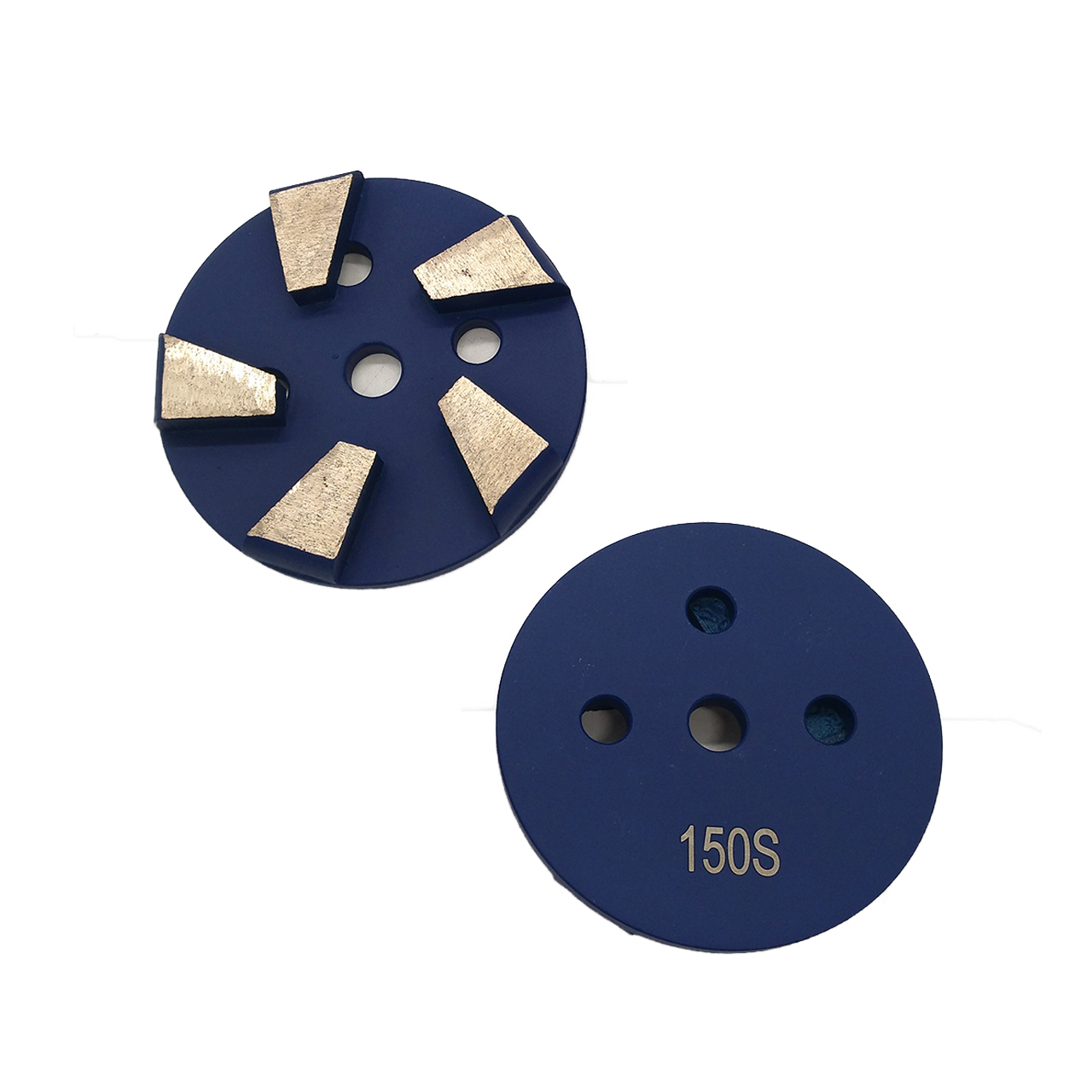

3'' Metal Bond Diamond Grinding Disc with 5 Segments (TP3-T5)
3'' Metal Bond Diamond Grinding Disc with 5 Segments (TP3-T5)
  • 3'' Metal Bond Diamond Grinding Disc with 5 Segments (TP3-T5)

  • item No : TP3-T5
  • Connection Available: M6, 9mm holes

    Size: 3''/80mm

    Grit  Available: 6#, 16#, 30/40#, 60/80#, 100/120#, 150#, 200#.

    Bond Type Available: soft bond, medium bond, hard bond

    Grinder: Universal Floor Grinder with 3''
  • Inquiry now

Detailed description


3'' Metal Bond Diamond Grinding Disc with 5 Segments (TP3-T5)

Bond Type Available: soft bond for hard concrete, medium bond for medium concrete, hard bond for soft concrete.

Specifications:

1. Grit available: 6#, 16#, 30/40#, 60/80#, 100/120#, 150#, 200#.

2. Bond Type Available: soft bond, medium bond, hard bond.

A. Extra Soft Bond - For Very Hard Concrete

      B. Soft Bond - For Hard Concrete.  Bonds needs to be soft to expose diamond crystals to grind the hard surface.  Hard  concrete contains hard granite, quartz, river stone, flint rock.

      C. Medium Strength Bond - Suggested in most cases, most popular and most common bond used.  For use on floors containing common pit gravel and/or medium river stone, traprock, crushed gravel.  The Soft and Hard Bonds are typically reserved for extreme (uncommon) cases.

       D. Hard Bond - For Soft Concrete.   Bond has harder metals in its matrix to withstand the abrasion, so the diamond crystals are not kicked-out before they have a chance to work the surface.  Soft concrete contains limestone, sandstone, dolmite, soft shell.

3. Most Consistent, Highest Quality

4. Wet or Dry use

5. Size: 3''/80mm


Features:

1. Efficient,stock removal for improve labor production while reducing tooling cost

2. More than just a great price, a consistent performer with very impressive durability

3. Double rectangular segments also removed lippage and light adhesives and coatings

4. Resurfaces damaged floors to produce a superior concrete surface ready for polishing, coating or sealing

5. Different bond types and various diamond grit sizes available
