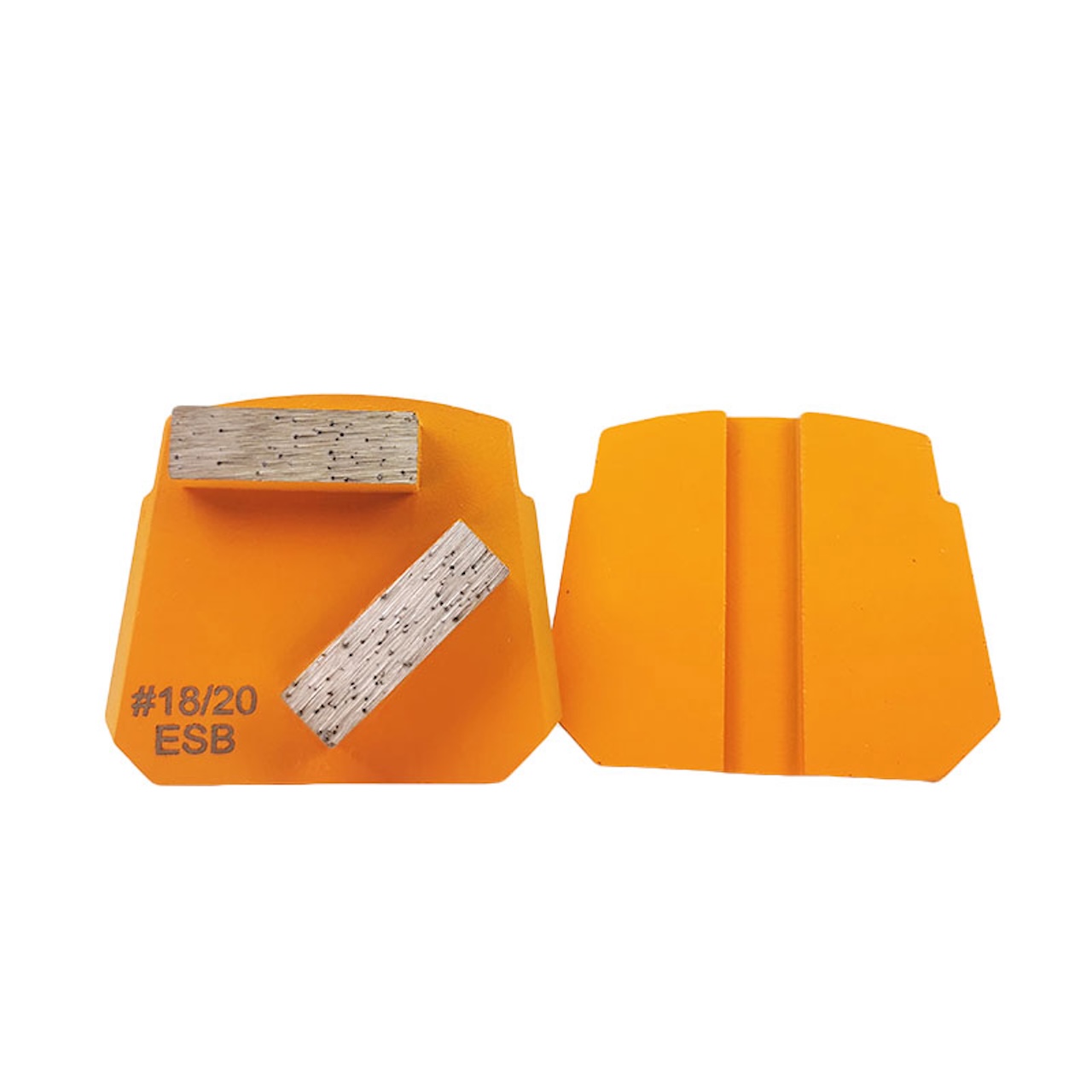

Metal Bond Double Bar Segments Diamond Grinding Shoe for Truloc Quick Change Floor Grinder System (TQC-B2)

Truloc Diamond Double Bar Segments, Metal Bond Double Bar Diamond Grinding Shoe for Truloc Quick Change Floor Grinder System (TQC-B2)

Our Truloc Diamond Double Bar Segments are professional metal bond diamond tooling built for Truloc quick change floor grinding system.

The double bar segment layout delivers balanced cutting force, stable grinding action and uniform scratch texture on concrete surfaces.

Standard Truloc quick-change mounting base enables convenient tool replacement and reduces downtime on site.

We offer soft, medium and hard bond formulas to adapt concrete of varying hardness, plus multiple grits covering aggressive rough grinding to fine transitional pre-polishing.

Widely applied for concrete floor refurbishment, terrazzo grinding, floor leveling and residual coating removal. OEM customization on bond color and grit is supported.


Specifications:

1. Grit available: 6#, 16#, 30/40#, 60/80#, 100/120#, 150#, 200#.

2. Bond Type Available: soft bond, medium bond, hard bond.

A. Extra Soft Bond - For Very Hard Concrete

      B. Soft Bond - For Hard Concrete.  Bonds needs to be soft to expose diamond crystals to grind the hard surface.  Hard  concrete contains hard granite, quartz, river stone, flint rock.

      C. Medium Strength Bond - Suggested in most cases, most popular and most common bond used.  For use on floors containing common pit gravel and/or medium river stone, traprock, crushed gravel.  The Soft and Hard Bonds are typically reserved for extreme (uncommon) cases.

       D. Hard Bond - For Soft Concrete.   Bond has harder metals in its matrix to withstand the abrasion, so the diamond crystals are not kicked-out before they have a chance to work the surface.  Soft concrete contains limestone, sandstone, dolmite, soft shell.

3. Most Consistent, Highest Quality

4. Wet or Dry use

5. Fits all Lavina grinders including latest models - bolt-on & magnetic

6. Diamond Segment Size: 40x10x10mm



Features:

1. Double bar segment design, stable cutting balance, uniform scratch pattern and high removal rate for concrete and terrazzo grinding

2. Standard Truloc quick change base, perfect fit for Truloc system floor grinders, fast install and swap without extra tools

3. Multiple bond options (soft / medium / hard), match different hardness concrete, from soft to ultra-hard concrete floors

4. Premium metal matrix with dense diamond grit, anti-glazing, consistent cutting performance and long service life

5. Wide grit selection available, suitable for rough grinding, high spot leveling, scratch removal and pre-polishing process
